ST125 6000rpm Spindle Speed CNC Style Swiss Lathe Machine

Brand Name : cnc swiss lathe machine

Model Number : SM325

Place of Origin : SHANDONG

Certification : CE

MOQ : 1/SET

Price : $39000-$55000

Payment Terms : T/T

Supply Ability : 30/SET

Delivery Time : 30DAYS

Packaging Details : non-fumigation wooden box

Control System : CNC

Axis : 5

Machine Structure : Horizontal

Spindle Speed : 8000rpm

Weight : 2000kg

Dimension : 2000mm x 1000mm x 1500mm

Max. Turning Diameter : 20mm

Type : Swiss Type

Voltage : 380V

Model : CNC Lathe Machine

Power : 5.5kW

Tool Size : 16mm

Number Of Tools : 12

Max. Turning Length : 200mm

Contact Now

ST125 6000rpm Spindle Speed Swiss Type CNC Lathe Machine for Your Production

ST125 cnc swiss type lathe
ST125 6000rpm Spindle Speed CNC Style Swiss Lathe Machine
Specification
Main functional accessories
Main technical parameters
numerical control system
Taiwan Province new generation 210TB+10.4 inch LCD monitor
Maximum machining diameter
Ø12mm
Spindle motor
1.5/2.2Kw built-in electric spindle
Sub-maximum feeding length
degree
Guide sleeve: 120mm
Without guide sleeve: 2.5D
Auxiliary shaft motor
1.5/2.2Kw built-in electric spindle
lathe tool
6x□10
Side milling motor
An Chuan 750w electric machinery
Side milling power head
1xER16+3xER11
Feed motor
An Chuan 750w electric machinery
End tool holder
5xØ22
mainshaft bearing
Japan NSK, P4 bearing
Back end cutter
4xER16
Synchronous guide sleeve bearing
Japan NSK/NACHI, grade P4 bearing
Maximum spindle speed
10000RPM
Ball screw
Taiwan Province HIWIN/PMI.C3 grinding screw rod
Maximum speed of auxiliary spindle
10000RPM
Screw bearing
Japan NSK/NACHI special bearing for screw rod
Fast moving speed
X1/Y1/Z1/Z2:32m/min X2:24m/min
Linear guide
Taiwan Province HIWIN/PMI.P grinding guide rail
positioning accuracy
≤0.005
pneumatic system
Japan SMC+ Taiwan Province Yadeke
Repetitive positioning accuracy
≤0.0025
lubrication system
Intelligent valley
C-axis indexing
0.001 degrees
Electric cabinet system
Independent electric cabinet
Spindle through hole
Ø13mm
electrical element
Omron/Schneider
Machine tool size
2100*1100*1685
Synchronous belt
UNITTA Japan
Machine tool weight
1900
Product Description

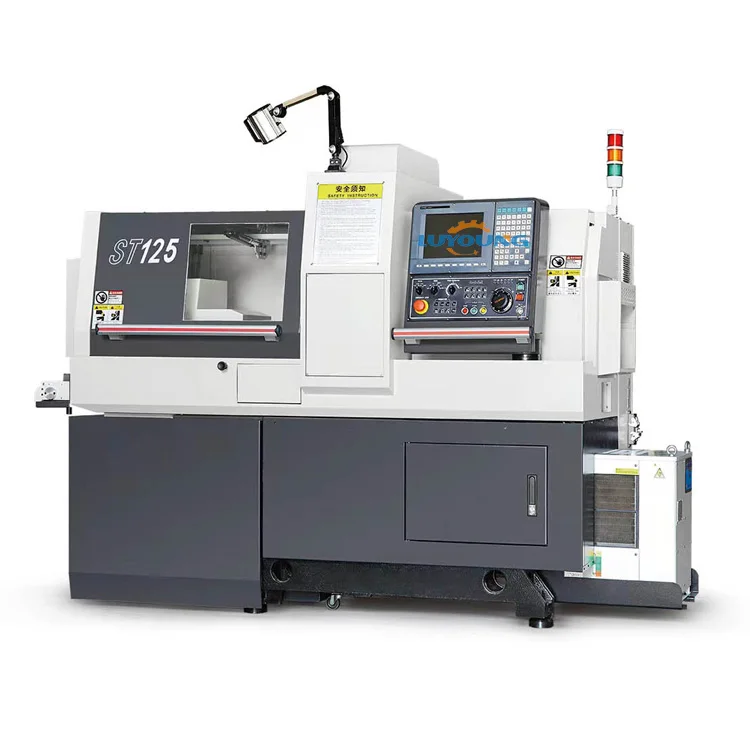

ST125 cnc swiss type lathe
1. High-speed, high-precision, and high-efficiency: The optimal tool layout adopts high-speed arithmetic processing control to minimize the tool change time and obtain the best positioning at the same time, reducing the auxiliary time to the shortest.
2. High configuration: Concentrating the most advantageous functional components, multi-axis abundant tool configuration, and standard power tools, which greatly expands the processing range and meets the complex processing of complex parts.
3. Convenient operation processing space: Convenient operation space, easy to change the tool, vertical downward tool can obtain the best chip removal.
ST125 6000rpm Spindle Speed CNC Style Swiss Lathe Machine
ST125 6000rpm Spindle Speed CNC Style Swiss Lathe Machine
Product Feature
ST125 6000rpm Spindle Speed CNC Style Swiss Lathe Machine
ST125 6000rpm Spindle Speed CNC Style Swiss Lathe Machine
Application
The use requirements of ST125 cnc swiss type lathe
1. Products that require mass processing are suitable for automatic lathe processing. Trouble.
2. When using an automatic lathe for processing, the workpiece structure should be suitable for automatic sorting of the workpiece and suitable for automatic feeding.
3. Whether the material of the workpiece is suitable for automatic processing. Generally, brass, zinc alloy, ordinary carbon steel and other materials have better processing performance and less wear on tools, so they are more suitable for automatic lathe processing.
4. Whether the diameter, length, and processing technology of the workpiece are suitable for automatic lathe processing.
ST125 6000rpm Spindle Speed CNC Style Swiss Lathe Machine
